Yamaha V6363-F

Written by
Rate this item
(0 votes)

MDA/CGA/Hercules chipset.



Chip name is CMDC.

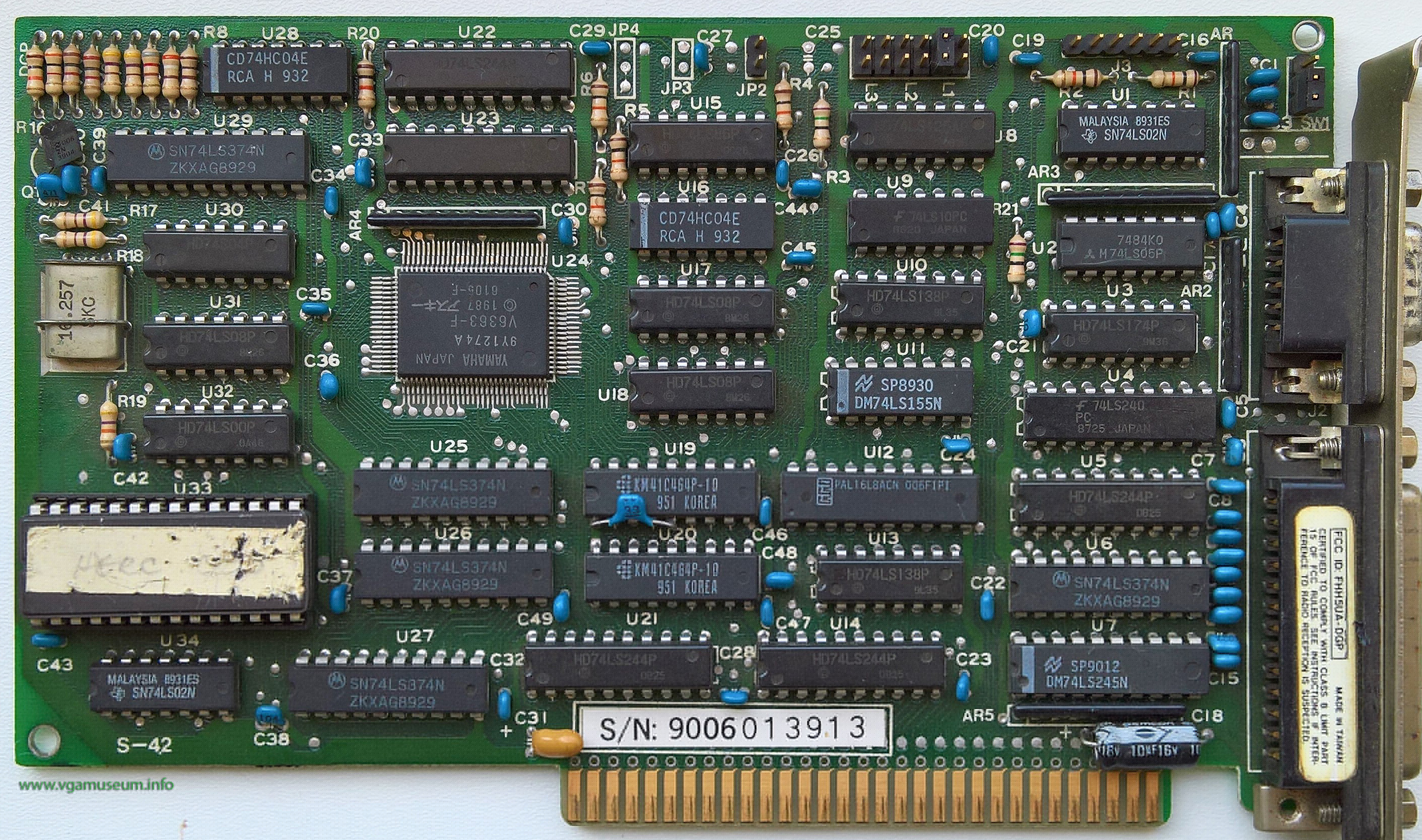

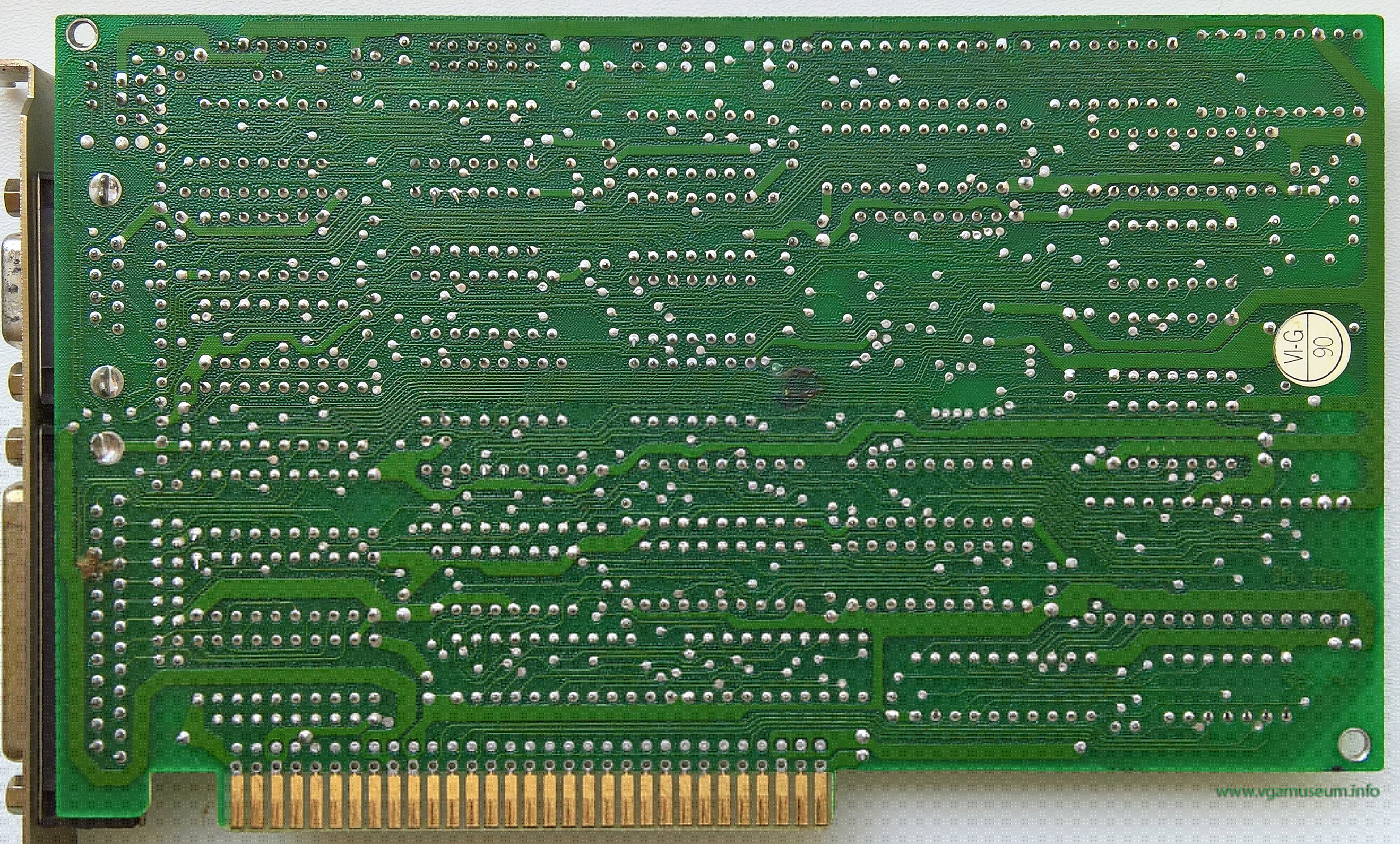

Palcal's card:

(407) Tiva Microcomputer Corporation (TMC) 5UA-DGP
(407) Tiva Microcomputer Corporation (TMC) 5UA-DGP
(407) Tiva Microcomputer Corporation (TMC) 5UA-DGP

(407) Tiva Microcomputer Corporation (TMC) 5UA-DGP
(407) Tiva Microcomputer Corporation (TMC) 5UA-DGP
(407) Tiva Microcomputer Corporation (TMC) 5UA-DGP

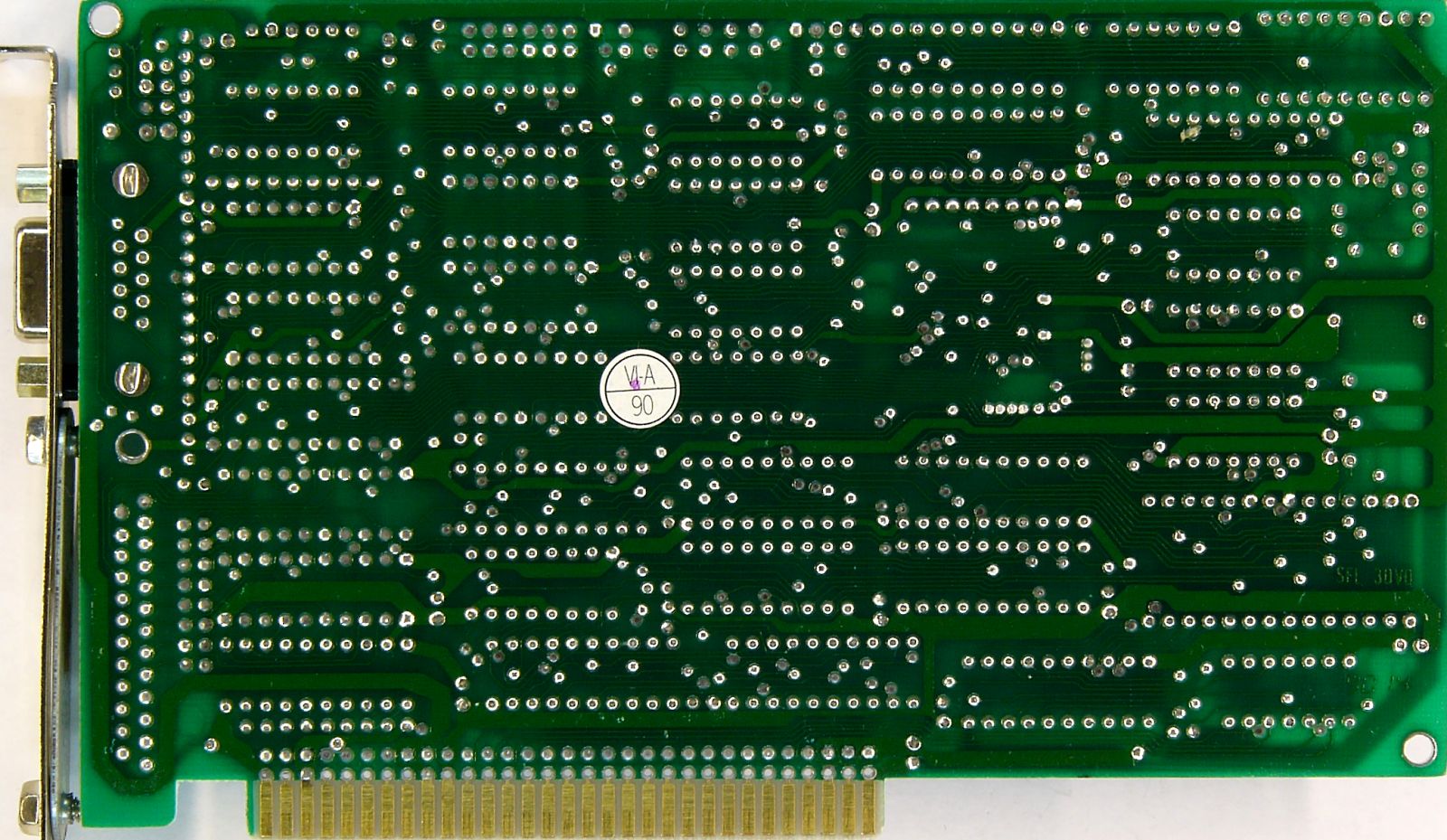

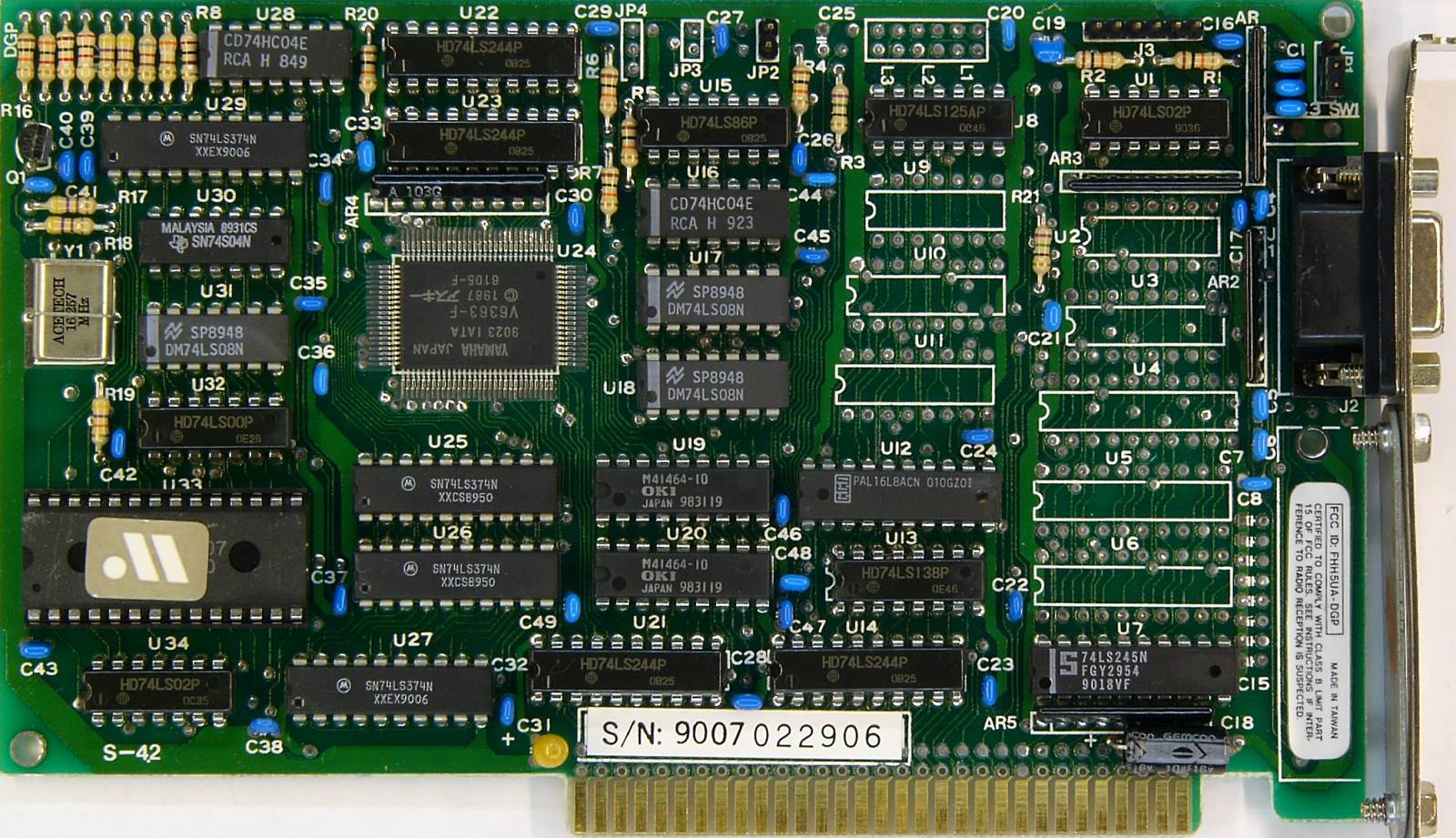

Pepino's card:

Tiva Microcomputer Corporation (TMC) 5UA-DGP
Tiva Microcomputer Corporation (TMC) 5UA-DGP
Tiva Microcomputer Corporation (TMC) 5UA-DGP

Tiva Microcomputer Corporation (TMC) 5UA-DGP
Tiva Microcomputer Corporation (TMC) 5UA-DGP
Tiva Microcomputer Corporation (TMC) 5UA-DGP

Additional Info

  • Made by: Yamaha
  • Codename: V6363 F
  • Bus: ISA 8bit
  • Memory Size: 64kB
  • Memory Type: DRAM
  • Year: 1987
  • Card Type: Hercules
  • Made in: Japan
  • Owned by: Palcal, Pepino
  • Outputs: 9 pin D‐sub
  • Sold by: Tiva Microcomputer Corporation
Read 17096 times Last modified on Monday, 13 April 2020 18:33

Comments

# Tulip DGA ISA 8bit -MDA/CGAMaurice H 2015-04-07 21:23
Found the manual for this card.
Its als used by Tulip and than called DGA.
Switchable between MDA and CGA

Marc that there are cards with and without the ROM-Ic labeld "Tulip".

Manual download link:
http://www.tulipgv.nl/download/DGA.pdf
# RE: Tulip DGA ISA 8bit -MDA/CGAVlask 2015-04-13 17:51
Name is similar, but cant see anywhere any info about used yamaha chipset. Could be any card. Also manual is for DGA hercules card with LPT port. This one have none. But in FCC ID is named DGP - could be cheaper model without LPT....
# RE: Tulip DGA ISA 8bit -MDA/CGAMaurice H 2015-04-13 21:12
Indead the IC's and LPT connector for parallel function is not mounted.
Just options of this board.
Backthen price was an issue I think.
But still basicly the same card.
